The VeroVis kinematic viscometer complies with internationally recognized testing standards including ASTM, ISO, and DIN methods for viscosity determination. This ensures reliable and reproducible measurements for laboratories performing oil analysis, fuel testing, and research applications.
VeroVis

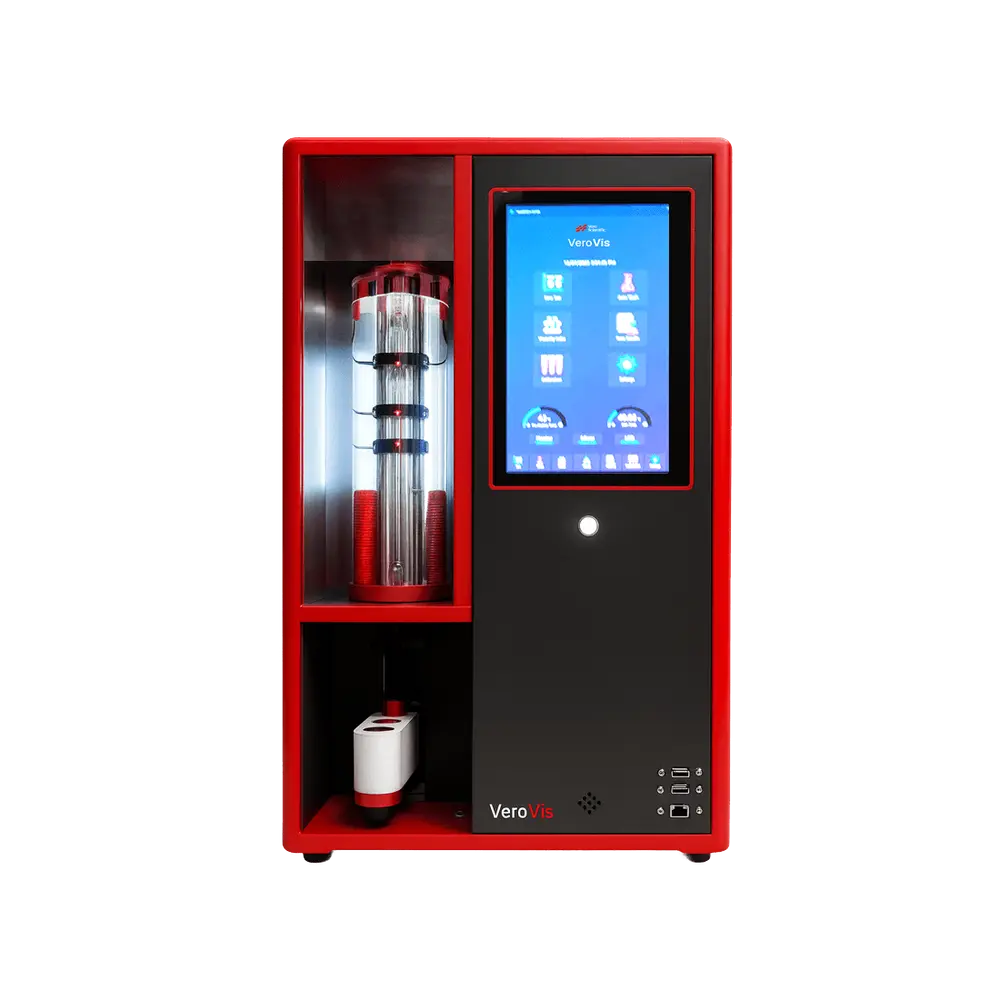

Automatic Kinematic Viscometer

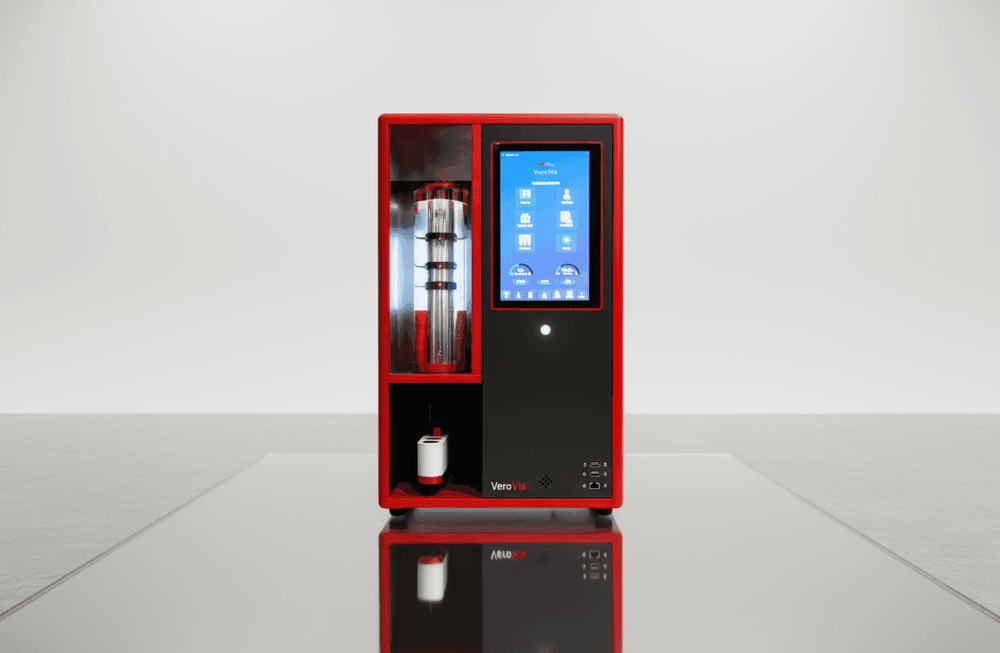

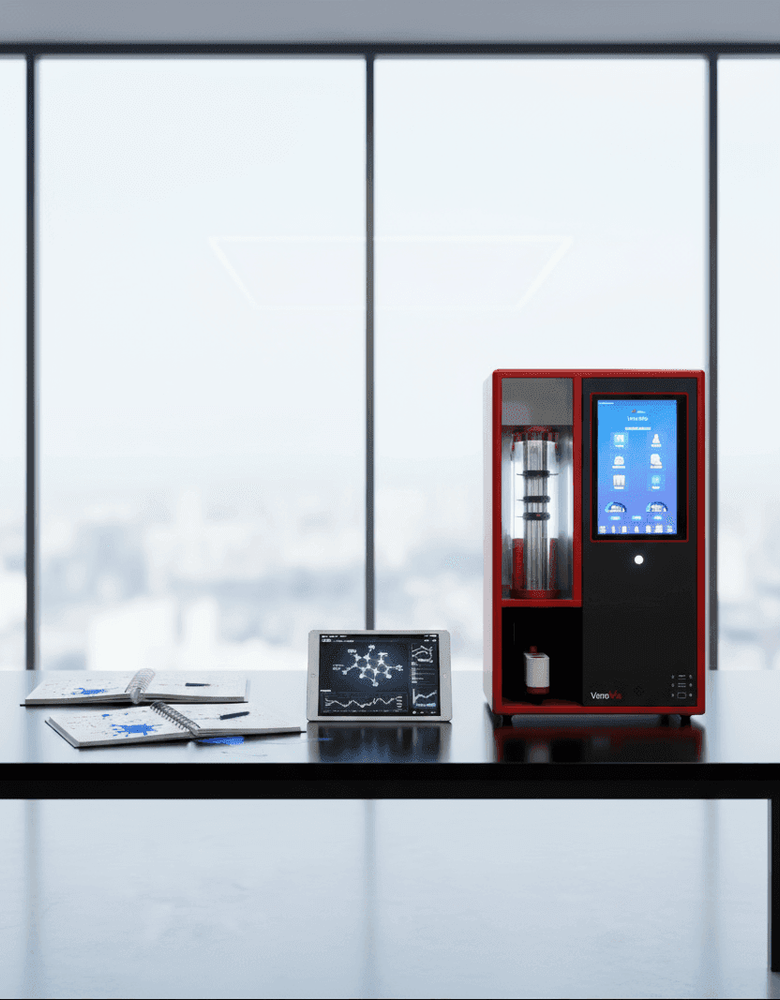

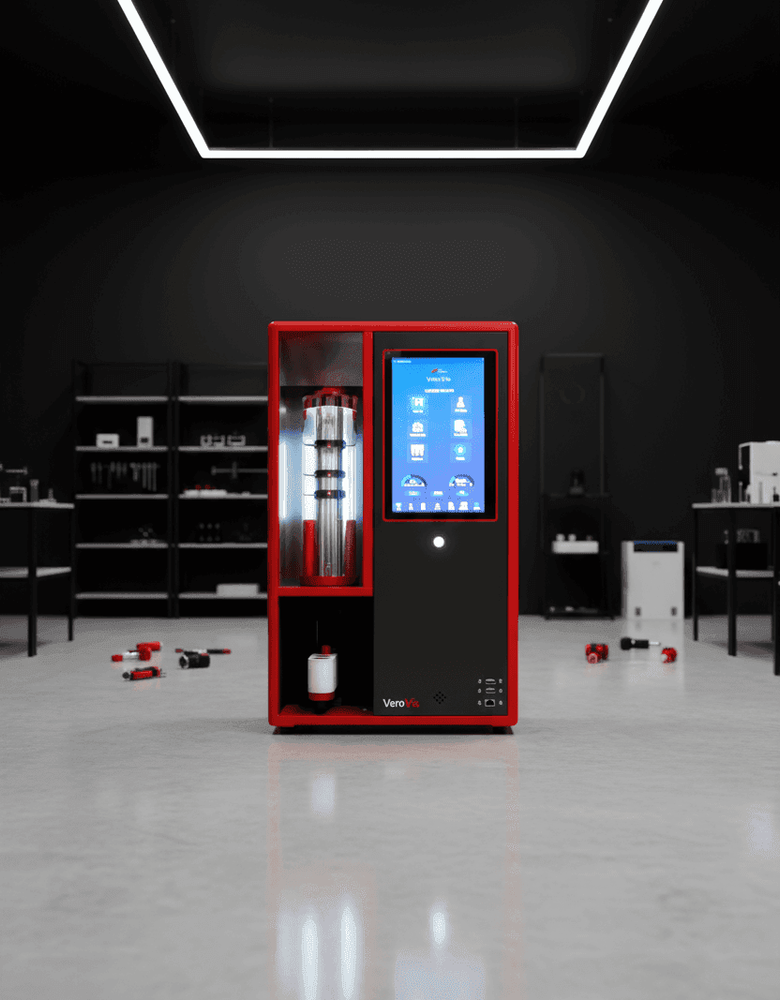

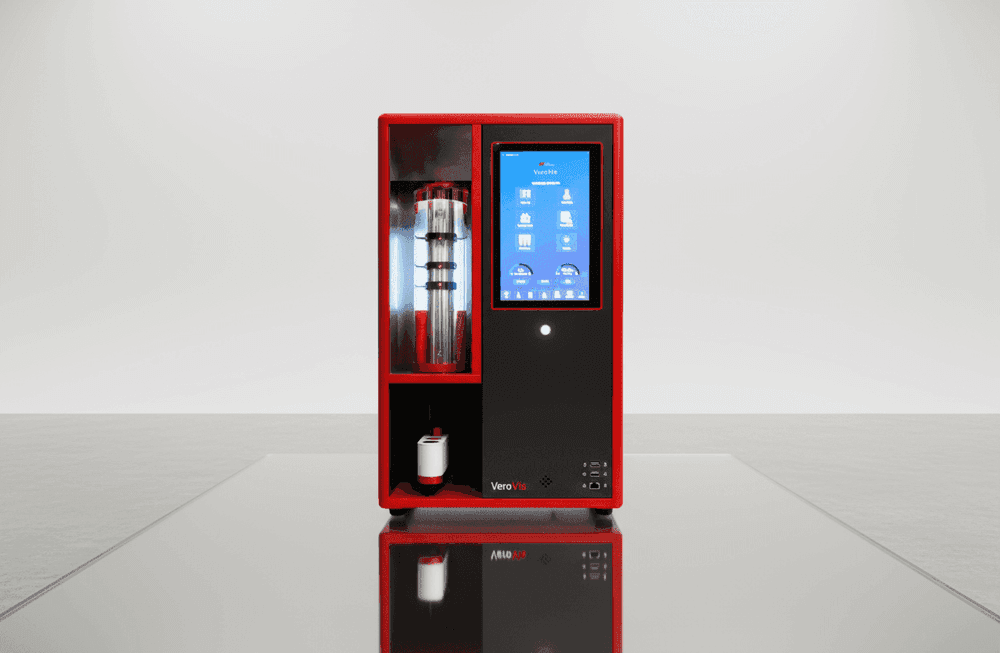

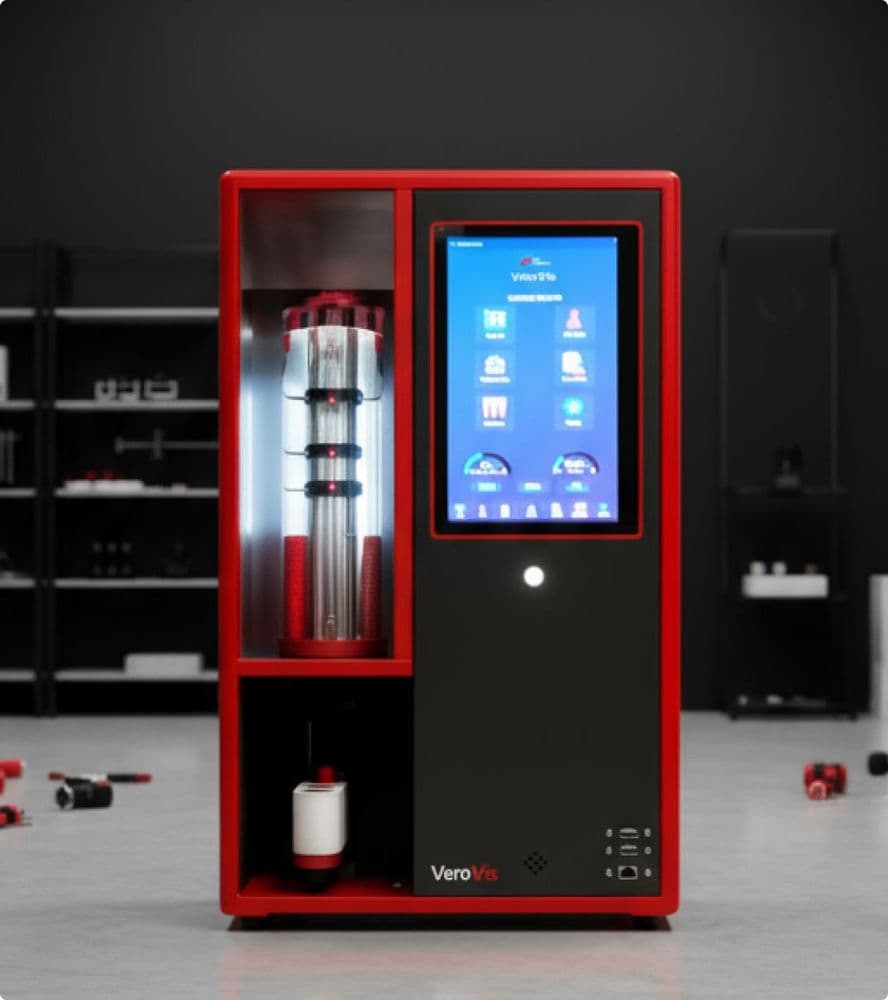

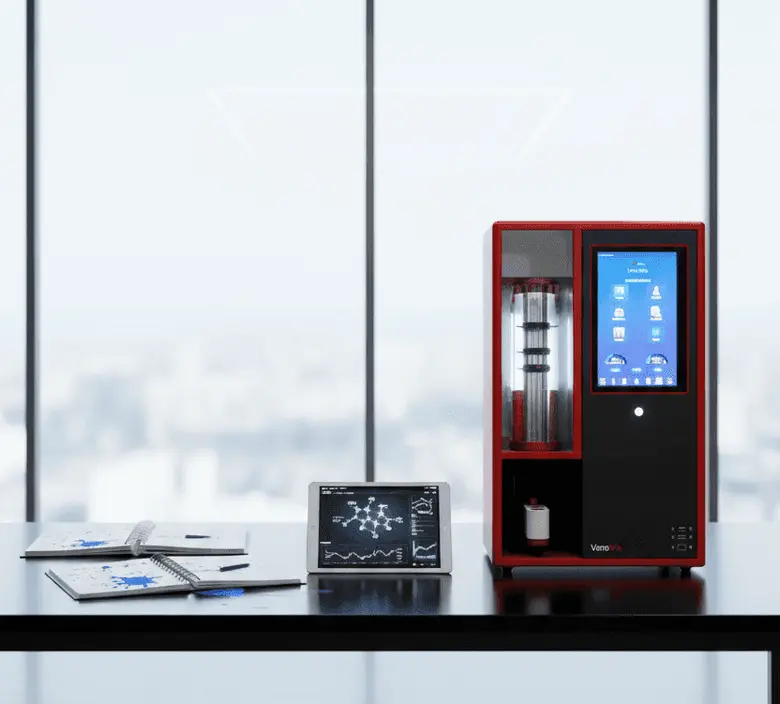

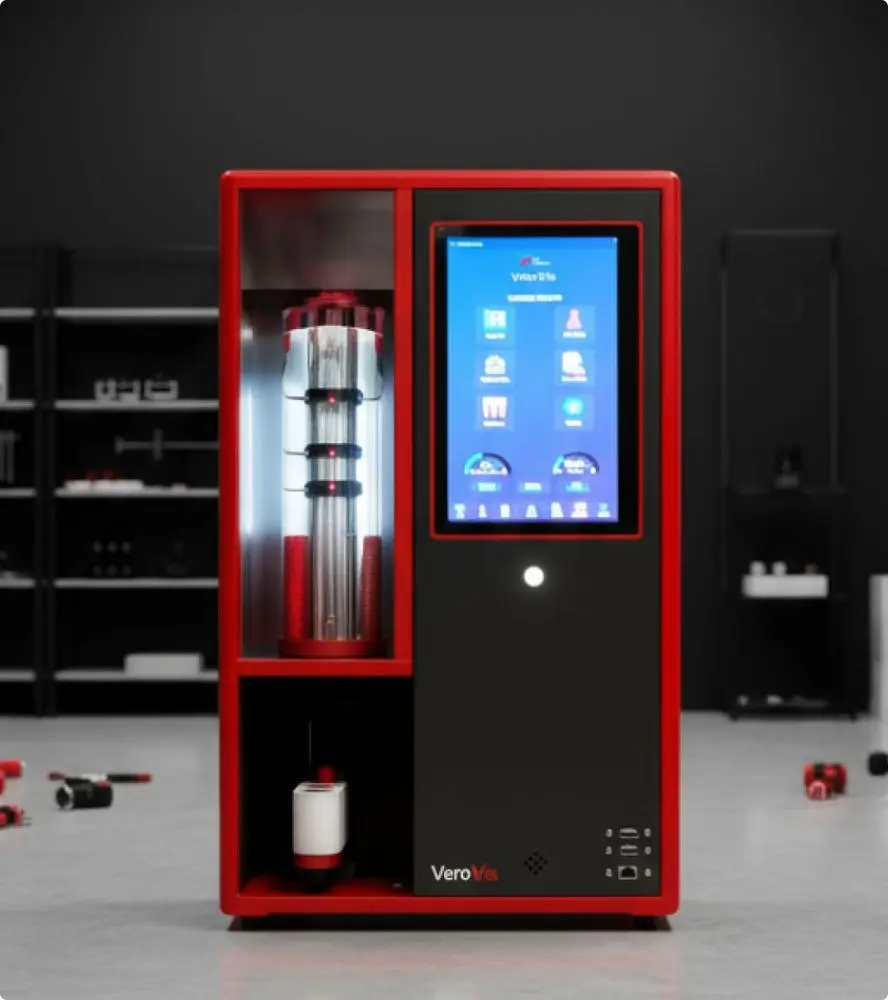

The VeroVis automatic kinematic viscometer is designed for accurate viscosity testing of oils, fuels, and other viscous liquids. It supports a wide range of applications including hydraulic oil analysis, marine fuel testing, base stock evaluation, crude oil testing, and lubricant quality control in laboratory environments.
Highlights

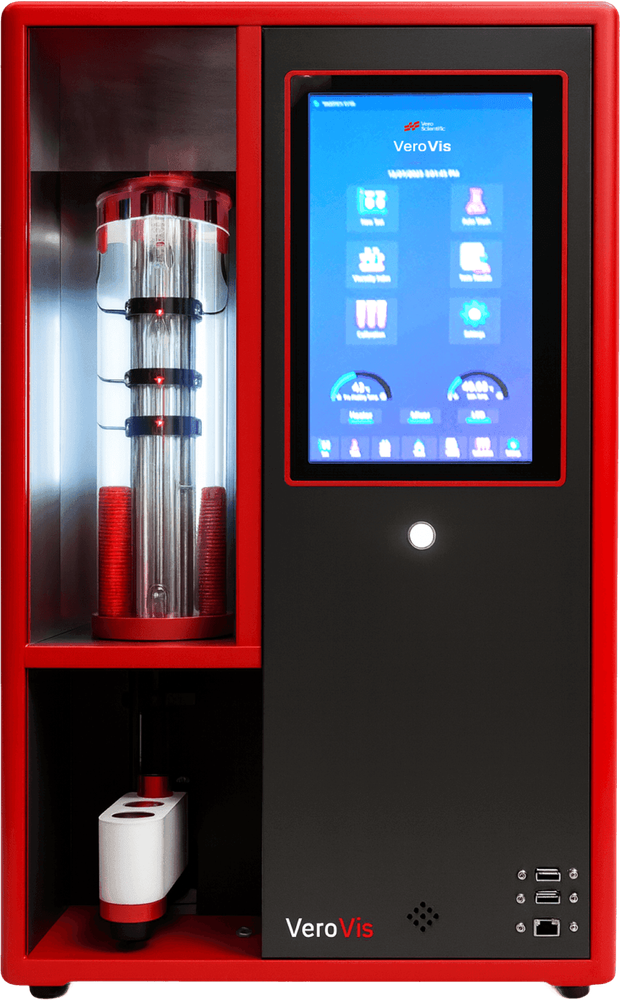

The VeroVis automatic kinematic viscometer delivers precise and fully automated viscosity measurement for a wide range of fluids, providing fast and reliable results in laboratory and industrial testing environments. With features like automatic washing, easy calibration, and real-time test result display, it is the ultimate tool for viscosity testing.
The instrument features an intuitive interface and advanced automation to simplify viscosity testing. Automatic sample volume selection ensures the correct amount of sample is analyzed based on viscosity, reducing manual adjustments and improving accuracy. The integrated temperature control system allows testing at 40°C and 100°C, supporting reliable viscosity index calculations.
After each test, the system automatically cleans the capillary tube using the selected solvent, ensuring consistent performance between samples. Test results are displayed clearly and can be exported in PDF format for documentation and further analysis. The system also supports two-point calibration and built-in self-check functions to maintain long-term measurement accuracy.
Features
Automated Viscosity Testing Features
The VeroVis is advanced viscosity measurement equipment designed for laboratories performing petroleum and lubricant testing.
- Automatic Sample Volume Selection: The VeroVis automatically adjusts the sample volume based on the viscosity of the fluid being tested, eliminating the need for manual intervention and reducing errors.
- Dual Temperature Testing: The device tests at both 40°C and 100°C, allowing for precise viscosity index determination.
- Efficient Test Process: With its simple interface and automated functions, the VeroVis ensures that the entire testing process, from sample input to result output, is efficient and seamless.
- Automatic Tube Cleaning: After each test, the VeroVis automatically washes the viscosity tube with the selected solvent, ensuring cleanliness and readiness for the next test.
Calibration and Customization
- Simple Calibration Procedure: The VeroVis allows for easy calibration with two-point testing, ensuring accurate and reliable results over time.
- Pre-Heating and Auto Tuning Functions: The device automatically tunes the oil bath for precise temperature control, making sure the viscosity measurements are accurate, even at varying temperatures.
- Customizable Settings: The VeroVis provides a range of customizable settings, including sample volume, wash air duration, and pre-heating control, to suit various testing needs.
- User-Friendly Software Interface: The device's software allows easy access to all settings, including volume percentage, tube cleaning percentage, and test settings, ensuring full control over the viscosity testing process.
Technical Specifications
| Model | VeroVis - Kinematic Viscometer |
| Standards Compliance | ASTM D445/D446, ISO 3104/3105, IP 71 |
| Applications | Kinematic Viscosity for Newtonian Liquids |
| Device Dimensions | W: 38cm D: 40cm H: 74cm |
| Weight | 32 Kg |
| Operation System | Windows 10 |
| User Interface | 10.1-inch capacitive touch screen |
| Result Storage Capacity | 10000 results |
| Result Format | |
| Power Supply | 220 Volt 50-60 Hz |
| Power Consumption | 500 W (Max) |
| Device Operating Environment | 10 °C to 50 °C |
| Oil Bath | 1.6 lt Volume |
| Temperature Range | 5°C to 150 °C (With Chiller Options) |
| Temperature Resolution | 0.01 °C |
| Automated Sample Capacity | 2 Sample |
| Sample Heating Function | Yes (Integrated with Sample Holder) |
| Automated Wash Capacity | 2 Solvent Input |
| Required Sample Volume | 20 ml |
| Requied Solvent (per test) | 10 – 20 ml (depending wash settings) |
| Timing Resolution | 0.001 Second |
